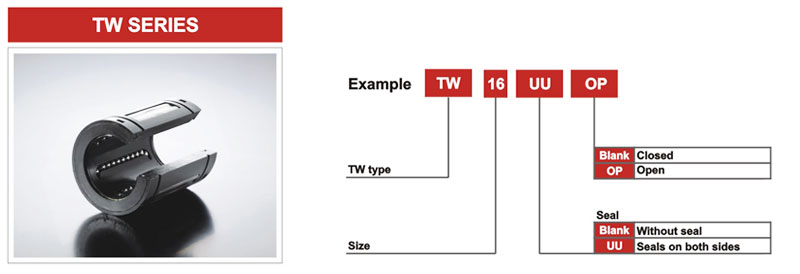

IN'S Linear Ball Bearing 　 　 Flanged Slide Bearing 　 　 Super Linear Ball Bearing 　 　 TK 　 TW 　 　 IN'S Linear Ball Bearing System Case Unit 　 　 IN'S Linear Ball Bearing System Support Rail Unit 　 　 IN'S Linear Ball Bearing System Shaft Support 　 　 IN'S Linear Ball Bearing System SM Shaft 　 　 IN'S Linear Ball Bearing System Interchangeability list 　 　 IN'S Linear Ball Bearing System Tolerances for inside diameter of housing

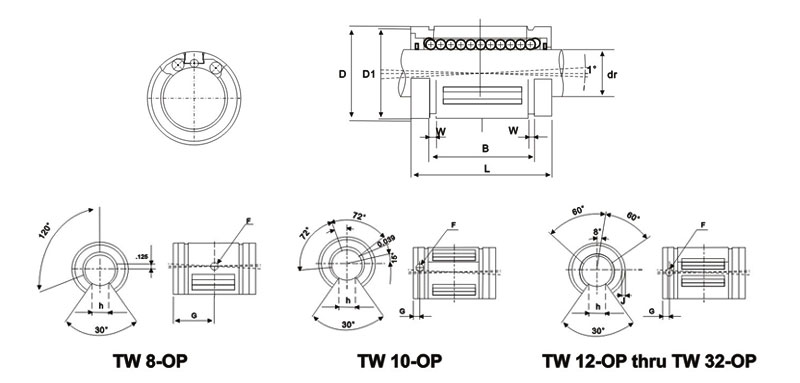

Part number Major dimensions Basic load rating Nominal shaft diameter Inch 　 closed type 　 　open type Inch dr　 D Inch Inch L Inch B W Inch D1 Inch Open type Dynamic C Ibs static Co Ibs 　No.of ball circuits Mass Ibs　 　No.of ball circuits Mass Ibs　 Tolera nce* (Inch) Tolera nce (Inch) Tolera nce (Inch) h Inch F Inch G Inch J Inch TK3 4 .004 — — — .1875 　 .3750 .562 ±.008 — — — — — — — — 35 47 3/16 TK4 4 .009 — — — .2500 　 .5000 .750        0 .515 0 .0390 .4687 — — — — 60 80 1/4 TK6 4 .014 — — — .3750 　 .6250 .875 -.015 .703 -.015 .0390 .5880 — — — — 95 120 3/8 TK8 4 .043 TK8-OP 3 .033 .5000          0 -.0005 .8750 1.250 　 1.032 　 .0459 .8209 .313 .136 .6250 through 230 290 1/2 TK10 5 .103 TK10-OP 4 .083 .6250 　 1.1250 1.500       0 1.112 0 .0559 1.0590 .375 .105 .1250 .0390 400 500 5/8 TK12 6 .123 TK12-OP 5 .102 .7500 　 1.2500 1.625 -.020 1.272 -.020 .0559 1.1760 .438 .136 .1250 .0590 470 590 3/4 TK16 6 .265 TK16-OP 5 .220 1.0000 　 1.5625 2.250 　 1.886 　 .0679 1.4687 .563 .136 .1250 .0470 850 1,060 1 TK20 6 .485 TK20-OP 5 .413 1.2500             0 2.0000 2.625 0/-.025 2.011 0/-.025 .0679 1.8859 .625 .201 .1875 .0900 1,230 1,530 1-1/4 TK24 6 .750 TK24-OP 5 .639 1.5000    -.0006 2.3750 3.000 0/-.030 2.411 0/-.030 .0859 2.2389 .750 .201 .1875 .0900 1,480 1,850 1-1/2 TK32 6 1.411 TK32-OP 5 1.168 2.0000 0/-.0008 3.0000 4.000 0/-.040 3.206 0/-.040 .1029 2.8379 1.000 .265 .3125 through 2,430 3,040 2 *Based on nominal housing bore 1N=0.102kgf
