SHF
SH
　 　 IN'S Linear Ball Bearing System SM Shaft
　 　 IN'S Linear Ball Bearing System Interchangeability list
　 　 IN'S Linear Ball Bearing System Tolerances for inside diameter of housing
　 　 　 　
　

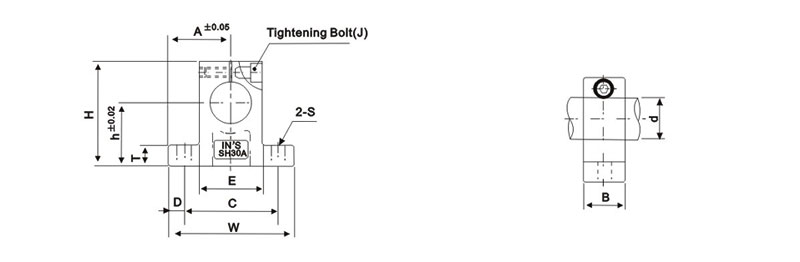

Part number
Shaft Dia.
Dimensions (mm)
Wgt.
g
h
A
W
H
T
E
D
C
B
S
J
SH8A
Ø8
20
21
42
32.8
6
18
5
32
14
Ø5.5
M4
24
SH10A
Ø10
20
21
42
32.8
6
18
5
32
14
Ø5.5
M4
24
SH12A
Ø12
23
21
42
38
6
20
5
32
14
Ø5.5
M4
30
SH13A
Ø13
23
21
42
38
6
20
5
32
14
Ø5.5
M4
30
SH16A
Ø16
27
24
48
44
8
25
5
38
16
Ø5.5
M4
40
SH20A
Ø20
31
30
60
51
10
30
7.5
45
20
Ø6.6
M5
70
SH25A
Ø25
35
35
70
60
12
38
7
56
24
Ø6.6
M6
130
SH30A
Ø30
42
42
84
70
12
44
10
64
28
Ø9
M6
180
SH35A
Ø35
50
49
98
85
15
50
12
74
32
Ø11
M8
270
SH40A
Ø40
60
57
114
96
15
60
12
90
36
Ø11
M8
420

　
